Cosine Accelerator on an FPGA in Verilog

This project involved taking subsequent steps to accelerate an arbitrary vector function: \(f(x) = \sum_{i=1}^{N} 0.5 \times x_i + x_i^2 \cos(\frac{x_i - 128}{128})\)
On a DE1-SoC FPGA board.

The start of this project involved relatively small hardware/software additions and optimizations. The final steps resulted in major latency reduction by adding a custom instruction to the NIOS-II soft-core processor via a bespoke digital block, including a CORDIC function in hardware.

Here are some of the optimizations that resulted in the largest speed gains:

  • Custom CORDIC hardware block with optimized iterations/word-length
  • Specialized Floating-Point power-of-2 divider
  • Optimum instruction and data cache sizes

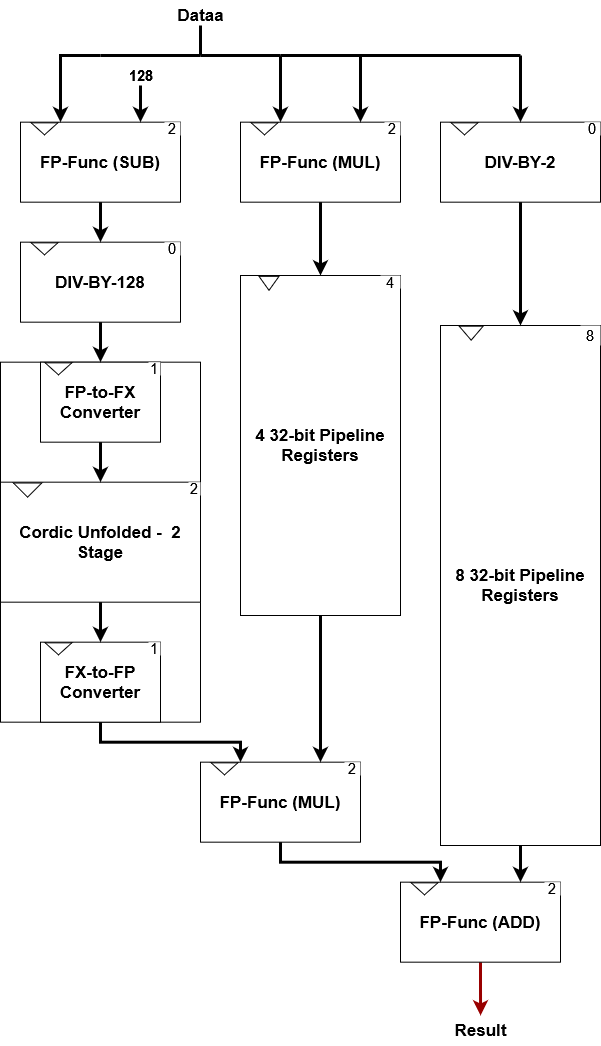

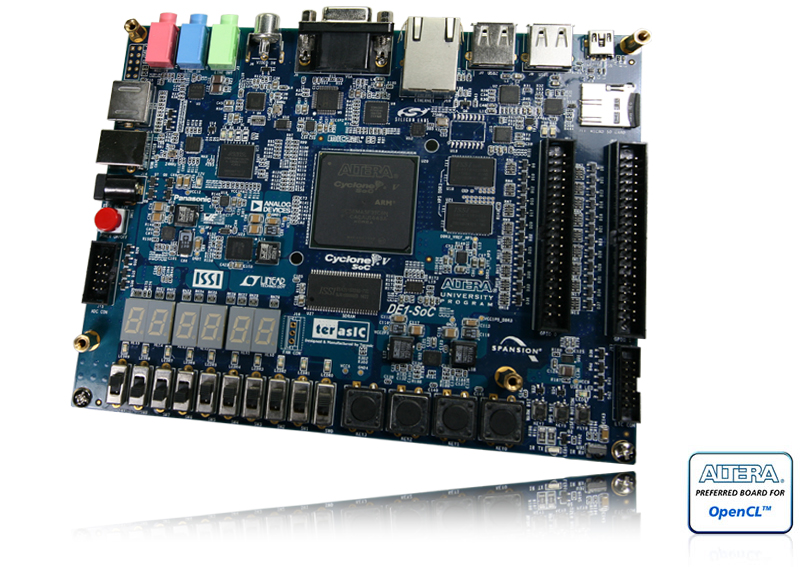

Left: The DE1-SoC FPGA board. Right: Bespoke digital block, implementing the arbitrary vector function mentioned above.
